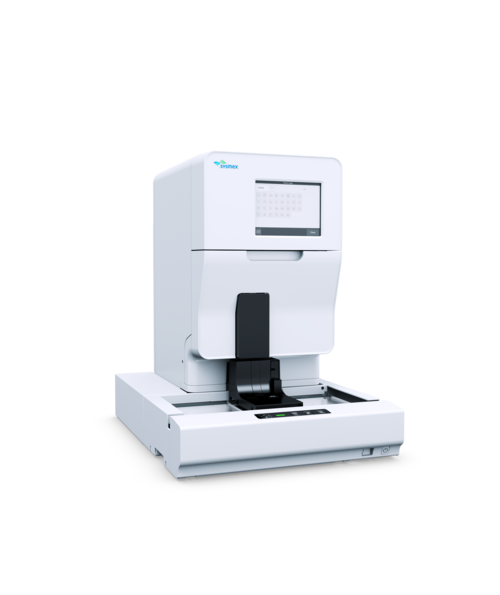

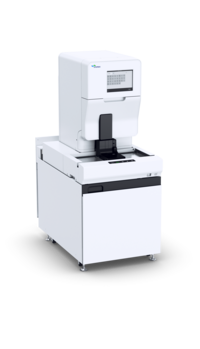

UD-10
Fully Automated Urine Particles Digital Imaging Device
- Complete analysis of urine in combination with the UF-5000/4000
- Fully automated digital imaging
- Gives a detailed view of urine particles
- Particles can be classified into 8 different classes based on size
Within the UN-Series, the UD-10 closes the total urinalysis workflow by capturing the particle images in urine samples. With its stage scanning technology, you confirm abnormal results from previous chemical and sediment analysis in a fully automated device.
Particles can be classified into eight different classes based on the size of particles. The images provide a detailed view of urine particles without performing a manual sediment or microscopy; the entire workflow can be processed automatically.
Particle images from the UD-10 help by differentiating abnormal or unclear results. Through individual rule settings with the Urinalysis Work Area Information Management System (U-WAM), you can modify workflows to meet your needs.
Measurement principles
- Automatic focus adjustment
- Cells are settling down on the bottom of imaging cell after aspiration
- Moving CCD camera captures images with pulsed LED
Modular concept solution

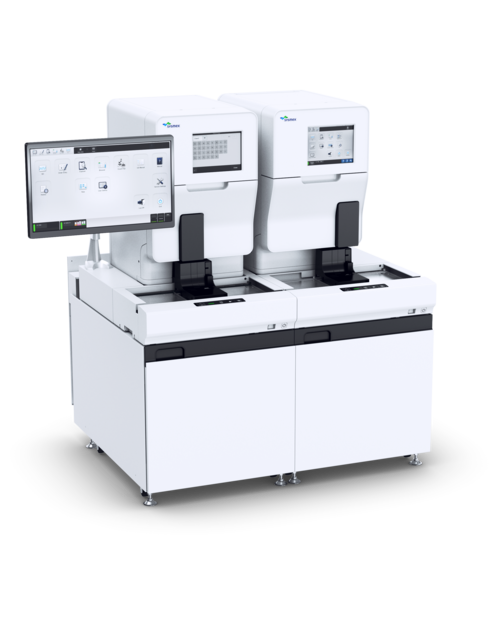

UD-10 comes always in combination with UF-5000/4000 and U-WAM (Urinalysis Work Area Information Management System). For a fully automated urinalysis workflow the UC-3500 can easily be connected.
Reagents
UF-Cellsheat
UF-Control (2 levels)
| Technology: | Stage Scanning method |
| Aspiration volumes: | 0.3 mL in sampler mode 0.3 mL in STAT mode |
| Minimum required volumes: | 1.6 mL in sampler mode 0.6 mL in STAT mode |
| Throughput: | 50 samples/h (normal mode) 30 samples/h (precise mode) |
| Parameters: | Max. 8 particle classes 40 pictures per sample (normal mode) 80 pictures per sample (precise mode) |
